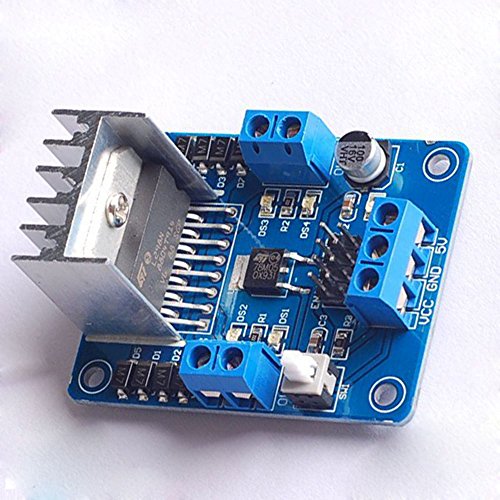

eFuture(TM) Board Module L298N Stepper Motor Driver Controller +eFuture's nice Keyring
|
List Price: unavailable Sale Price: $4.19 Availability: Usually ships in 1-2 business days
|
Product Description
Control signal input voltage range:Low level:-0.3V ¡Ü Vin ¡Ü 1.5V, HIGH: 2.3V ¡Ü Vin ¡Ü Vss. Enable signal input voltage range:Low level: -0.3 ¡Ü Vin ¡Ü 1.5V (control signal is invalid), HIGH: 2.3V ¡Ü Vin ¡Ü Vss (control signal). Maximum power consumption: 20W (temperature T = 75 ¡ã C). Storage Temperature: -25 ¡æ ~ +130 ¡æ. Driver Board Size: 48mm * 43mm * 33mm (with fixed copper pillar and the heat sink height). Extension: control direction indicators, the logic part of the plate to take power interface. Instructions for use: Stepper motor driver: board of ENA and ENB is high here refers to the level of a TTL level. ENA for the A1 and A2 make terminal, ENB can end so as B1 and IB2. BJ public access stepper motor end. Package include: 1 x L298N Controller Board Module. 1 x eFuture's nice Keyring (with eFuture's logo)
Details
- Driver chips: L298N dual H-bridge DC motor driver chip.
- Logical part of the operating current range: 0 ~ 36mA.
- Maximum Power Consumption: 20W ( at 75 deg C).
- driven part of the peak current Io: 2A.
